LUXEON CoB Core Range – High Density 专注于实现最高的中心光束烛光度 (CBCP)。在 6、9 及 11mm 的发光表面下，可实现高达 8,000 流明的光通量范围。High Density 系列采用 LUXEON CoB Core Range 的机械尺寸设计，同时可与现有的支架、光学设备及驱动器生态系统兼容。
For information on the LUXEON CoB Core Range (Gen 3), please refer to the product datasheet.
| PRODUCT |
NOMINAL CCT |
MINIMUM CRI |
LUMINOUS FLUX (LM) |
TYPICAL LUMINOUS EFFICACY (LM/W) |
TEST CURRENT (MA) |
LES (MM) |
PART NUMBER | |
|---|---|---|---|---|---|---|---|---|
| MINIMUM | TYPICAL | |||||||
|
LUXEON CoB 1202HD
|
3000K | 70 | 1388 | 1542 | 119 | 350 | 6 | L2C5-30701202EH600 |
| 4000K | 70 | 1505 | 1673 | 125 | 350 | 6 | L2C5-40701202EH600 | |
| 5000K | 70 | 1505 | 1673 | 125 | 350 | 6 | L2C5-50701202EH600 | |
|
2700K |
80 | 1240 | 1378 | 106 | 350 | 6 | L2C5-27801202EH600 | |
| 3000K | 80 | 1368 | 1520 | 112 | 350 | 6 | L2C5-30801202EH600 | |
| 3500K | 80 | 1406 | 1562 | 114 | 350 | 6 | L2C5-35801202EH600 | |
| 4000K | 80 | 1438 | 1598 | 116 | 350 | 6 | L2C5-40801202EH600 | |
| 5000K | 80 | 1425 | 1583 | 116 | 350 | 6 | L2C5-50801202EH600 | |
| 5700K | 80 | 1432 | 1591 | 116 | 350 | 6 | L2C5-57801202EH600 | |
| 2700K | 90 | 1059 | 1177 | 90 | 350 | 6 | L2C5-27901202EH600 | |
| 3000K | 90 | 1124 | 1248 | 92 | 350 | 6 | L2C5-30901202EH600 | |
| 3500K | 90 | 1223 | 1359 | 105 | 350 | 6 | L2C5-35901202EH600 | |
| 4000K | 90 | 1217 | 1353 | 99 | 350 | 6 | L2C5-40901202EH600 | |

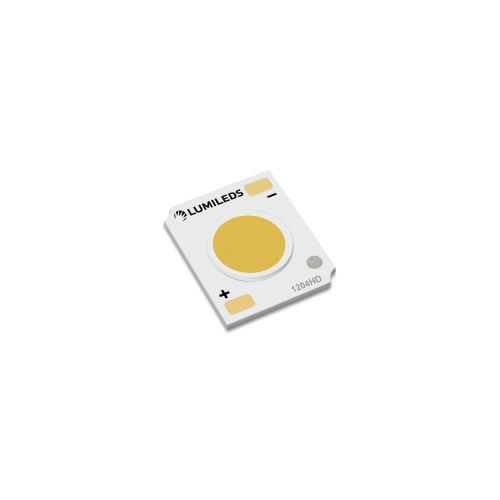

| LUXEON CoB 1204HD | 3000K | 70 | 2887 | 3207 | 124 | 700 | 9 | L2C5-30701204E0900 |
| 3500K | 70 | 2800 | 3111 | 120 | 700 | 9 | L2C5-35701204E0900 | |
| 4000K | 70 | 3011 | 3345 | 129 | 700 | 9 | L2C5-40701204E0900 | |
| 5000K | 70 | 3011 | 3345 | 129 | 700 | 9 | L2C5-50701204E0900 | |
| 5700K | 70 | 2866 | 3185 | 123 | 700 | 9 | L2C5-57701204E0900 | |
| 6500K | 70 | 2824 | 3137 | 121 | 700 | 9 | L2C5-65701204E0900 | |
| 2200K | 80 | 2140 | 2378 | 92 | 700 | 9 | L2C5-22801204E0900 | |
| 2700K | 80 | 2554 | 2838 | 110 | 700 | 9 | L2C5-27801204E0900 | |
| 3000K | 80 | 2688 | 2987 | 115 | 700 | 9 | L2C5-30801204E0900 | |
| 3500K | 80 | 2742 | 3047 | 118 | 700 | 9 | L2C5-30801204E0900 | |
| 4000K | 80 | 2850 | 3167 | 122 | 700 | 9 | L2C5-40801204E0900 | |
| 5000K | 80 | 2850 | 3167 | 122 | 700 | 9 | L2C5-50801204E0900 | |
| 5700K | 80 | 2891 | 3212 | 124 | 700 | 9 | L2C5-57801204E0900 | |
| 2200K | 90 | 1864 | 2071 | 80 | 700 | 9 | L2C5-22901204E0900 | |
| 2700K | 90 | 2130 | 2366 | 91 | 700 | 9 | L2C5-27901204E0900 | |
| 3000K | 90 | 2269 | 2521 | 97 | 700 | 9 | L2C5-30901204E0900 | |
| 3200K | 90 | 2271 | 2523 | 97 | 700 | 9 | L2C5-32901204E0900 | |
| 3500K | 90 | 2365 | 2628 | 101 | 700 | 9 | L2C5-35901204E0900 | |
| 4000K | 90 | 2458 | 2731 | 105 | 700 | 9 | L2C5-40901204E0900 | |

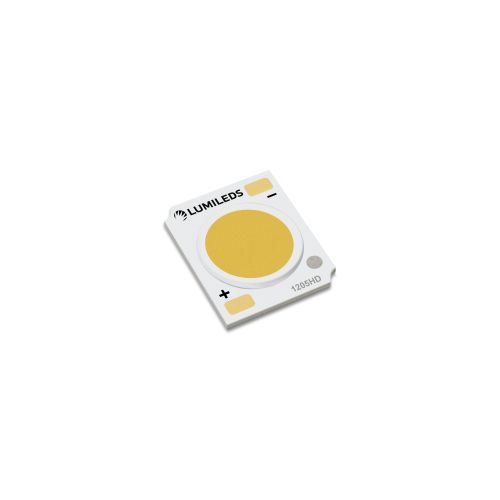

| LUXEON CoB 1205HD | 3000K | 70 | 3360 | 3950 | 119 | 900 | 11 | L2C5-30701205E1100 |
| 4000K | 70 | 3780 | 4200 | 126 | 900 | 11 | L2C5-40701205E1100 | |
| 5000K | 70 | 3780 | 4200 | 126 | 900 | 11 | L2C5-50701205E1100 | |
| 2700K | 80 | 3207 | 3563 | 107 | 900 | 11 | L2C5-27801205E1100 | |
| 3000K | 80 | 3375 | 3750 | 113 | 900 | 11 | L2C5-30801205E1100 | |
| 3500K | 80 | 3546 | 3940 | 118 | 900 | 11 | L2C5-35801205E1100 | |
| 4000K | 80 | 3650 | 4056 | 122 | 900 | 11 | L2C5-40801205E1100 | |
| 5000K | 80 | 3545 | 3939 | 118 | 900 | 11 | L2C5-50801205E1100 | |
| 5700K | 80 | 3702 | 4114 | 124 | 900 | 11 | L2C5-57801205E1100 | |
| 2700K | 90 | 2727 | 3030 | 91 | 900 | 11 | L2C5-27901205E1100 | |
| 3000K | 90 | 2934 | 3260 | 98 | 900 | 11 | L2C5-30901205E1100 | |
| 4000K | 90 | 3119 | 3465 | 104 | 900 | 11 | L2C5-40901205E1100 | |
 |
|
