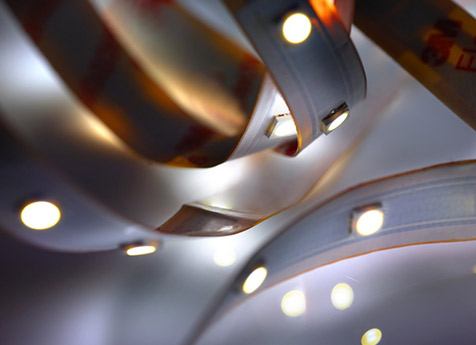

LUXEON XF-3535L 是全整合型解决方案，专为需要能够轻松装入任何尺寸灯具外壳的挠性线性 LED 阵列的照明应用优化。该总体解决方案可减少光学和机械设计工作，缩短上市时间及简化供应链。配合 LUXEON 3535L，LUXEON XF-3535L 可提供 LUXEON LED 保证的超强光性能。
|
NOMINAL CCT |
MINIMUM CRI |
LUMINOUS FLUX (lm) |
TYPICAL LUMINOUS EFFICACY (lm/W) |
TEST CURRENT (mA) |
PART NUMBER | |
|---|---|---|---|---|---|---|
| MINIMUM | TYPICAL | |||||
| 2200K | 80 | 1080 | 1206 | 112 | 600 | L235-2280AHLxByAC0 |
| 80 | 1680 | 1876 | 112 | 800 | L235-2280AMLF5WAD0 | |
| 80 | 3240 | 3618 | 112 | 900 | L235-2280AULM5JAI0 | |
| 2700K | 80 | 1368 | 1476 | 137 | 600 | L235-2780AHLxByAC0 |
| 80 | 2128 | 2296 | 137 | 800 | L235-2780AMLF5WAD0 | |
| 80 |
4104 |
4428 | 137 | 900 | L235-2780AULM5JAI0 | |
| 85 | 1080 | 1224 | 113 | 600 | L235-2790AHLxByAC0 | |
| 85 | 1680 | 1904 | 113 | 800 | L235-2790AMLF5WAD0 | |
| 85 | 3240 | 3672 | 113 | 900 | L235-2790AULM5JAI0 | |
| 3000K | 80 | 1368 | 1512 | 140 | 600 | L235-3080AHLxByAC0 |
| 80 | 2128 | 2352 | 140 | 800 | L235-3080AMLF5WAD0 | |
| 80 | 4104 | 4536 | 140 | 900 | L235-3080AULM5JAI0 | |
| 3500K | 80 | 1512 | 1548 | 143 | 600 | L235-3580AHLxByAC0 |
| 80 | 2352 | 2408 | 143 | 800 | L235-3580AMLF5WAD0 | |
| 80 | 4536 | 4644 | 143 | 900 | L235-3580AULM5JAI0 | |
| 4000K | 80 | 1512 | 1584 | 147 | 600 | L235-4080AHLxByAC0 |
| 80 | 2352 | 2464 | 147 | 800 | L235-4080AMLF5WAD0 | |
| 80 | 4536 | 4752 | 147 | 900 | L235-4080AULM5JAI0 | |
| 85 | 1224 | 1368 | 127 | 600 | L235-4090AHLxByAC0 | |
| 85 | 1904 | 2128 | 127 | 800 | L235-4090AMLF5WAD0 | |
| 85 | 3672 | 4104 | 127 | 900 | L235-4090AULM5JAI0 | |
| 5000K | 80 | 1512 | 1692 | 157 | 600 | L235-5080AHLxByAC0 |
| 80 | 2352 | 2632 | 157 | 800 | L235-5080AMLF5WAD0 | |
| 80 | 4536 | 5076 | 157 | 900 | L235-5080AULM5JAI0 | |
| 5700K | 80 | 1512 | 1548 | 143 | 600 | L235-5780AHLxByAC0 |
| 80 | 2352 | 2408 | 143 | 800 | L235-5780AMLF5WAD0 | |
| 80 | 4536 | 4644 | 143 | 900 | L235-5780AULM5JAI0 | |
| 70 | 1584 | 1692 | 157 | 600 | L235-5770AHLxByAC0 | |
| 70 | 2464 | 2632 | 157 | 800 | L235-5770AMLF5WAD0 | |
| 70 | 4752 | 5076 | 157 | 900 | L235-5770AULM5JAI0 | |
 |
|
