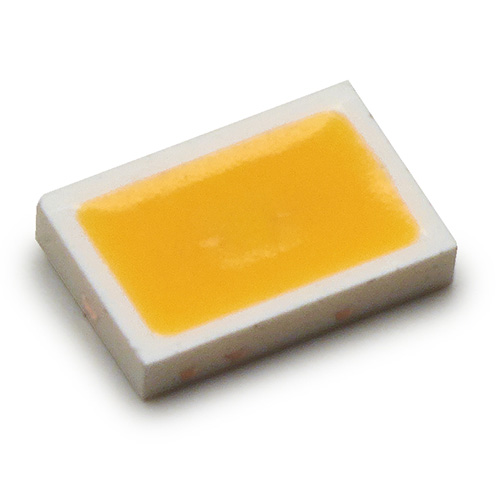

LUXEON 3020 是第一款也是唯一一款采用 EMC 型 3.0mm x 2.0mm QFN 的暖光解决方案，该产品可在 85℃ 工作条件下确保卓越的效率、流明维护以及 ANSI 颜色合规。Lumileds 已通过简化系统设计和整合领先的流明成本比率及暖光设计理念，实现廉价可靠的灯泡及灯具的大批量生产。
|
NOMINAL CCT
|
MINIMUM CRI
|
LUMINOUS FLUX
(lm) |
TYPICAL LUMINOUS EFFICACY
(lm/W) |
TYPICAL LUMINOUS FLUX (LM)
|
TYPICAL LUMINOUS EFFICACY (LM/W)
|
PART NUMBER
|
|
|---|---|---|---|---|---|---|---|
|
MINIMIM
|
TYPICAL
|
100MA
|
|||||
|
120MA
|
|||||||
| 4000K | 70 | 51 | 56 | 153 |
48
|
160 | L130-4070002011001 |
| 5000K | 70 | 51 | 56 | 153 | 48 | 160 | L130-5070002011001 |
| 5700K | 70 | 51 | 56 | 153 | 48 | 160 | L130-5770002011001 |
| 6500K | 70 | 51 | 56 | 153 | 48 | 160 | L130-6570002011001 |
| 2200K | 80 | 40 | 46 | 125 | 40 | 133 | L130-2280002011001 |
| 2500K | 80 | 44 | 50 | 135 | 43 | 143 | L130-2580002011001 |
| 2700K | 80 | 42 | 52 | 134 | 42 | 140 | L130-2780002011001 |
| 3000K | 80 | 44 | 53 | 134 | 43 | 143 | L130-3080002011001 |
| 3500K | 80 | 45 | 55 | 139 | 44 | 147 | L130-3580002011001 |
| 4000K | 80 | 46 | 57 | 145 | 46 | 153 | L130-4080002011001 |
| 5000K | 80 | 46 | 58 | 145 | 46 | 153 | L130-5080002011001 |
| 5700K | 80 | 46 | 57 | 145 | 46 | 153 | L130-5780002011001 |
| 6500K | 80 | 46 | 57 | 145 | 46 | 153 | L130-6580002011001 |
| 2700K | 90 | 36 | 41 | 112 | 35 | 117 | L130-2790002011001 |
| 3000K | 90 | 37 | 42 | 115 | 36 | 120 | L130-3090002011001 |
| 3500K | 90 | 38 | 43 | 117 | 37 | 123 | L130-3590002011001 |
| 4000K | 90 | 40 | 45 | 123 | 38 | 127 | L130-4090002011001 |
 |
|
