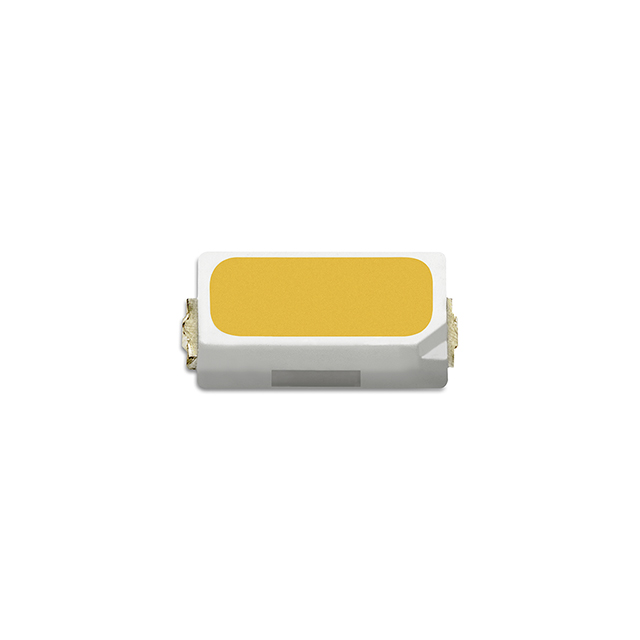

LUXEON 3014 采用行业标准兼容尺寸，可轻松装入现有的 3014 插座，支持 3.0mm x 1.4mm x 0.75mm 封装。LUXEON 3014 是适合 65℃ 工作条件的暖光解决方案。该低功率设备尤其适合需要确保一致性及减少斑点的室内设计。
For more information on LUXEON 3014 legacy product, please refer to the product datasheet.
Product performance at 60mA and 30mA Tj=25°C.
|
NOMINAL CCT |
MINIMUM CRI
|
LUMINOUS FLUX (LM) @ 60MA
|
TYPICAL LUMINIOUS EFFICACY
(LM/W) |
TYPICAL LUMINOUS FLUX (LM)
|
TYPICAL LUMINOUS EFFICACY (LM/W)
|
PART NUMBER
|
|
|---|---|---|---|---|---|---|---|
|
MINIMUM
|
TYPICAL
|
||||||
|
60MA
|
30MA
|
||||||
| 8000K | 70 | 25 | 28 | 150 | 15 | 172 | L130-8070001400001 |
| 10000K | 70 | 23 | 27 | 145 | 14 | 166 | L130-1070001400001 |
| 2200K | 80 | 19 | 22 | 118 | 12 | 135 | L130-2280001400001 |
| 2500K | 80 | 21 | 24 | 129 | 12 | 148 | L130-2580001400001 |
| 2700K | 80 | 23 | 26 | 140 | 13 | 161 | L130-2780001400001 |
| 3000K | 80 | 23 | 26 | 140 | 13 | 161 | L130-3080001400001 |
| 3500K | 80 | 23 | 26 | 140 | 13 | 161 | L130-3580001400001 |
| 4000K | 80 | 25 | 28 | 150 | 15 | 172 | L130-4080001400001 |
| 5000K | 80 | 25 | 28 | 150 | 15 | 172 | L130-5080001400001 |
| 5700K | 80 | 25 | 28 | 150 | 15 | 172 | L130-5780001400001 |
| 6500K | 80 | 25 | 27 | 145 | 15 | 166 | L130-6580001400001 |
| 2200K | 90 | 16 | 18 | 97 | 9 | 99 | L130-2290001400001 |
| 2700K | 90 | 18 | 20 | 102 | 11 | 118 | L130-2790001400001 |
| 3000K | 90 | 19 | 20 | 102 | 11 | 118 | L130-3090001400001 |
| 3500K | 90 | 19 | 22 | 113 | 12 | 129 | L130-3590001400001 |
| 4000K | 90 | 20 | 23 | 113 | 12 | 129 | L130-4090001400001 |
| 5000K | 90 | 20 | 23 | 118 | 13 | 140 | L130-5090001400001 |
| 5700K | 90 | 20 | 23 | 118 | 13 | 140 | L130-5790001400001 |
| 6500K | 90 | 20 | 23 | 113 | 12 | 129 |
L130-6590001400001 |
 |
|
